Over £30k better off over 7 years. Swapping an Oil Boiler for a Ground Source Heat Pump

  • Ground Source Heat Pumps Groundwork 2
  • Ground Source Heat Pumps Groundwork
  • Go Eco Renewables Van
  • Ground Source Heat Pumps Groundwork 3

Mr & Mrs S have a 4 bedroom, semi-detached barn conversation in Heslington, York. Their Oil Boiler was coming to the end of its life and needed to be replaced and having heard about renewable heating systems they wanted to know what options would be available to them.

Go Eco carried out a detailed survey of the property and calculated the property’s heat loss requirement, took measurements of the surrounding land and made their recommendations.

Mr & Mrs S had been paying approximately £1700 per year to fuel their oil boiler and after considering their options, it was agreed that a Ground Source Heat Pump would be the best solution. Not only would making the swap reduce their carbon footprint, it would save them around £700 per year in fuel bills and also earn around £25,000 in RHI incentives over 7 years.

The Heat Pump system cost around £21,000 to install but Mr & Mrs S would earn back £3600 per year (for 7 years) in Renewable Heating Incentive. So, in short, they are now about £5k per year better off. As you can imagine they are very happy customers.

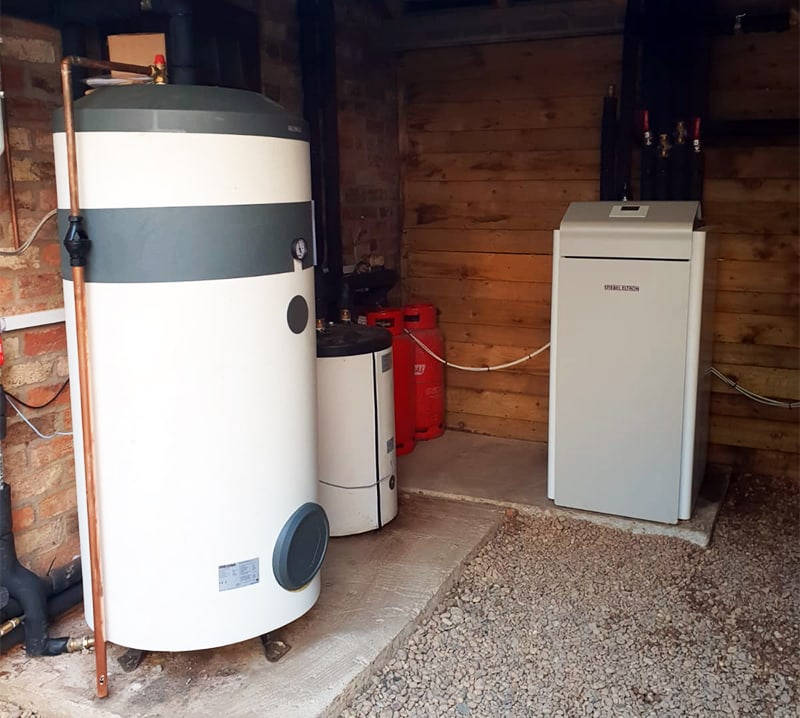

Ground Source Heat Pump Schofield

The System

Heating: 1 x Steible Eltron WPF13KW Ground Source Heat Pump System with 300 Litre Cylinder and 100 Litre Buffer.

The Project

Go Eco, with the help of WM Rural Contractors, excavated 3 trenches for the ground collector pipe and a further trench for the header pipe to lay in. The Go Eco engineers de-coiled 3 x 200m ground loops, laid 1 loop in each trench and then fused these to a sub terranean FRANK manifold which connects to the header pipe.

The header pipe then ran under the driveway into the shed to connect the ground collectors to the plant room. The Compressor, buffer and hot water cylinder were all located in the outside shed and lagged with high efficient insulation to prevent heat loss. The flow and return then ran under the driveway via pre insulted pipes and connected up to the existing heating system.

The GoEco team did a great job with our installation.  They were very professional and kept us informed with updates throughout the installation. We would highly recommended them

Mr & Mrs S
